Layout Example
AUTOParkit

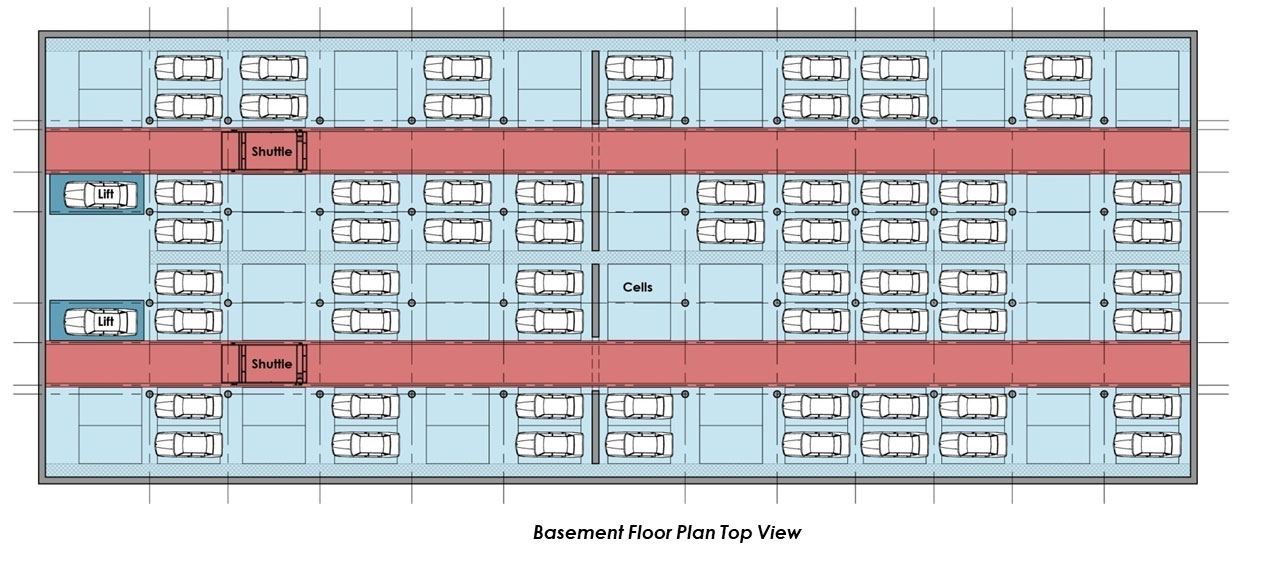

Typical Example
AUTOParkit
Odd Shaped Lot Example
Parking:
Conventional: 157-3 levels subterranean
Automated:
196-2 levels subterranean,
2 levels above grade
AUTOParkit
Narrow Example
Parking:
Conventional: 157-3 levels subterranean
Conventional: 157-3 levels subterranean
Automated:
196-2 levels subterranean,
2 levels above grade
DENSITY:
AUTOParkit

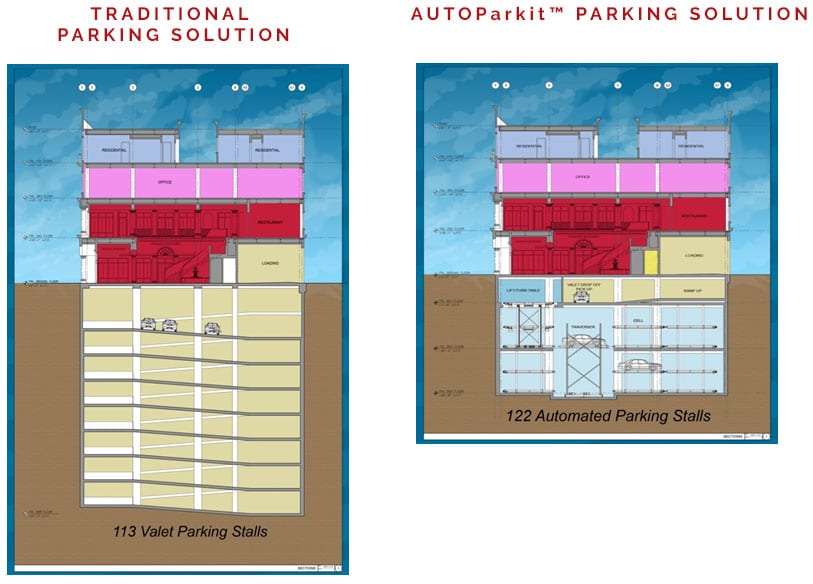

Subterranean
Comparison
In a recent subterranean installation, the project saved over $1M in excavation by using AUTOParkit.
DENSITY: AUTOParkit Subterranean Comparison

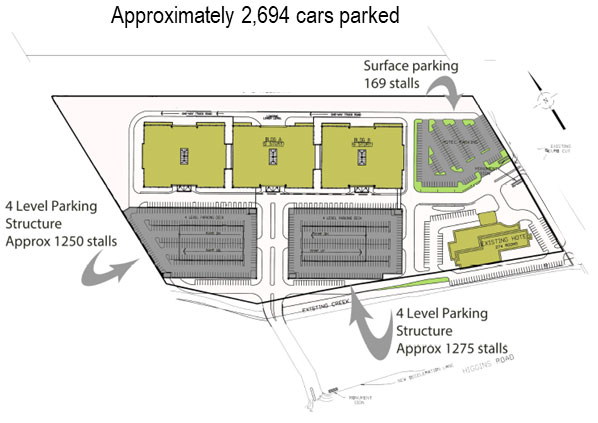

Site with Conventional
Parking Structures

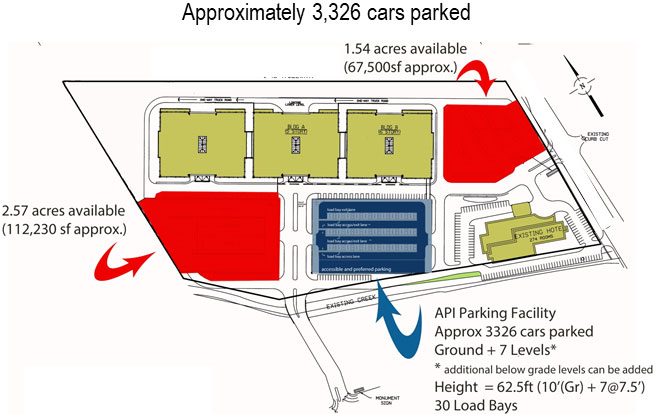

Site with AUTOParkit
AUTOParkit

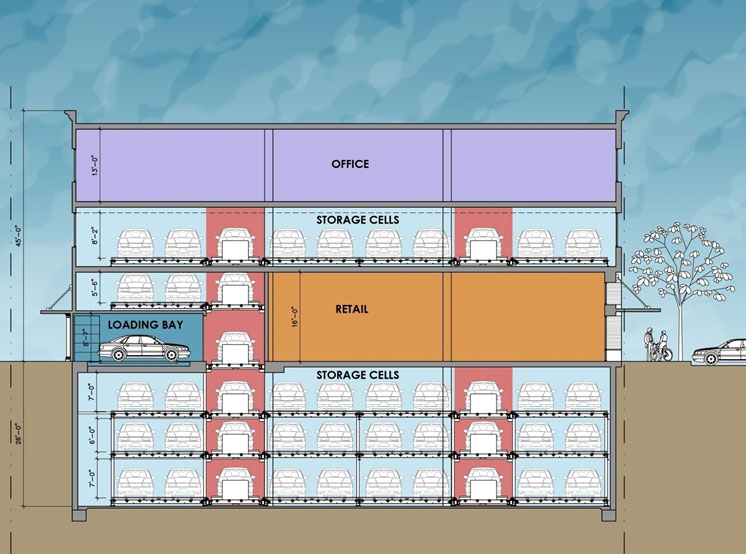

Above and Below
Grade Example
Project Summary:
L-03 – Office +/-13,000 sf
L-02 – Parking - 52 stalls
Mezz – Parking -14 stalls
L-01 – Retail +/-7,000 sf
B-01 – Parking – 58 stalls
B-02 – Parking – 58 stalls
B-03 – Parking – 54 stalls
Automated Parking Total:
236 stalls
